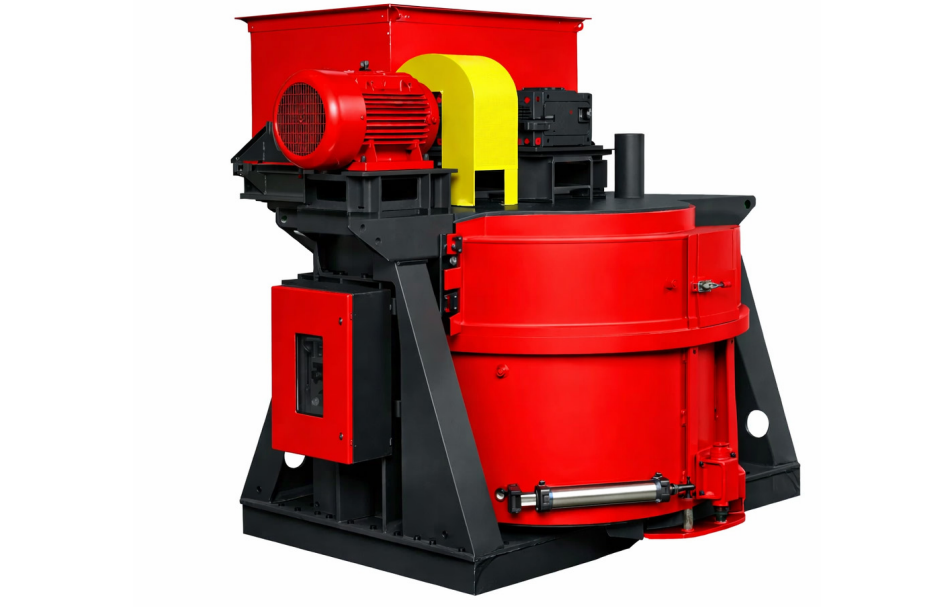

CFIM Series — Green Sand Plant
Efficient and economic operation due to high throughput rate and short mixing cycle.
Easy access to all wear parts for quick replacement.
Low maintenance requirement due to robust components and minimum wear mixing tools and mixer bowl.
| Model No. | Production Rate (Ton/Hr.) | Cycle Time (Sec.) | Overall Dimension (mm) | Power (HP.) |
|---|---|---|---|---|
| CFIM1 | 9 | 120 | 2000 X 2250 | 28 |
| CFIM2 | 30 | 120 | 2100 X 2450 | 140 |
| CFIM3 | 36 | 120 | 2300 X 2950 | 160 |
| CFIM4 | 45 | 120 | 2450 X 3200 | 200 |

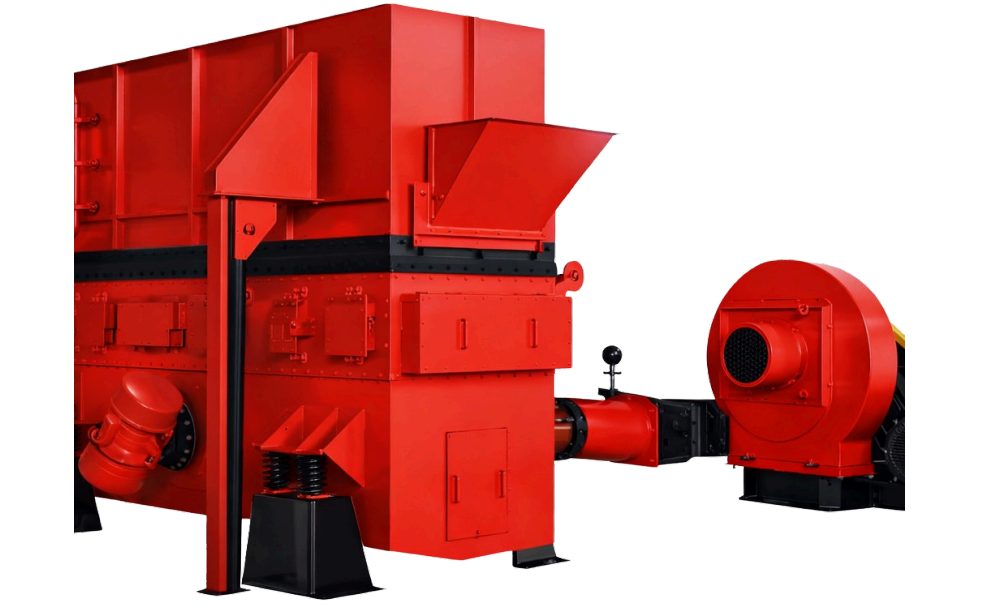

CFSC Series — Green Sand Plant
Robust design.
Low maintenance.
Long lasting operation.
Available in different models for different output requirements.
| Model No. | Capacity (Ton/Hr.) | FD Power Fan (HP.) | Size (mm) |
|---|---|---|---|
| CFSC1 | 9-12 | 25 | 2100 X 810 |
| CFSC2 | 20-25 | 40 | 4100 X 1100 |
| CFSC3 | 30-35 | 50 | 5100 X 1100 |
| CFSC4 | 40-45 | 60 | 5200 X 1200 |

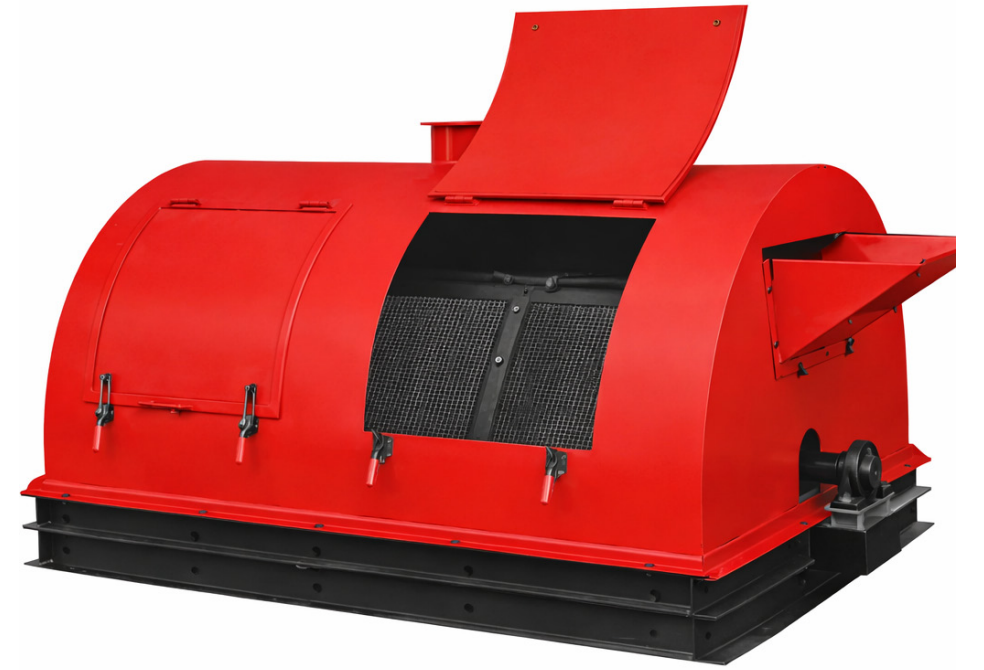

CFPS Series — Green Sand Plant
Polygonal shaped sieve mesh with high precision and high wear resistant stainless-steel material.
Rotary movement ensures discharge of fine quality, lump-free and homogeneous return sand.
| Model No. | Capacity (Ton/Hr.) | Motor (HP.) | Type Of Motion |
|---|---|---|---|
| CFPS1 | 10 | 2.5 | ROTARY |
| CFPS2 | 20 | 5 | ROTARY |
| CFPS3 | 30 | 7.5 | ROTARY |
| CFPS4 | 50 | 15 | ROTARY |
